obniz
Cloud connected development board
Kickstarter funded project
https://www.kickstarter.com/projects/cambrianrobotics/obniz-api-managed-io
Details here.
https://obniz.io/
[ Features ]
* REST/Websocket API
obniz is connected to obniz cloud by using Wifi. IO and BLE etc can be managed with REST/Websocket API on the cloud.
* sdk for javascript
You can write a program with a HTML with sdk.
* online html editor

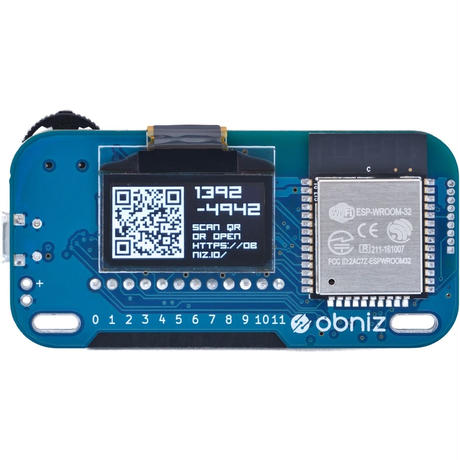

obniz shows QR on it's OLED. By scanning it with smartphone, You will be on the web page "online html editor". You are free to program/run. Without App.
* connect various parts directly
Huge flexibility
- 12 IO
- max 1A @ each IO.
- 5v/3v switch. output mode push-pull/open-drain. pull-up3v, pull-up5v,pull-down are available. Each configuration is independent.
- AD/SPI/I2C can be assigned to each IO
* Over current protection
Auto shut down when over current/ over heating detected with 1A mode.

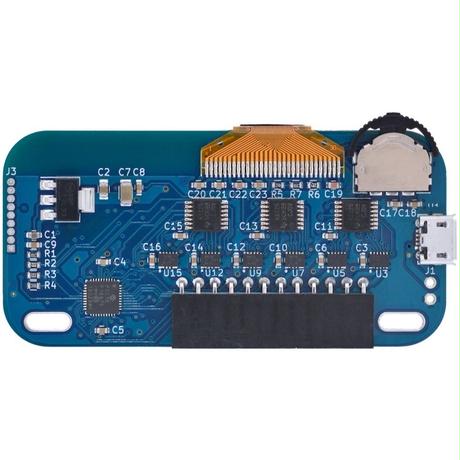

[ Hardware Specifications ]
Dimension: 74.5*36.3 mm (including usb,switch )
WiFi: 802.11 b/g. 802.11 n (2.4 GHz), up to 150 Mbps
Bluetooth: Compliant with Bluetooth v4.2 BR/EDR and BLE specification
Certifications: See ESP-WROOM-32 's Certification
http://espressif.com/en/certificates?field_product_value%5B%5D=ESP-WROOM-32
OLED: White 128*64
Peripherals:
- GPIO 12
- A/D 12
- PWM 6 assignable to everyIO
- UART 2 assignable to everyIO
- SPI 2 assignable to everyIO
- I2C 1 assignable to everyIO
Soldering: PbFree
==================================
obniz
クラウドに繋がった開発ボード
米国クラウドファンディング「kickstarter」で達成したプロジェクトです。
https://www.kickstarter.com/projects/cambrianrobotics/obniz-api-managed-io
詳細はこちら
https://obniz.io/
[ 特徴 ]
* REST/Websocket API
obnizはWifiを使いobniz cloudにつながります。 obnizのIOやBLEはobniz cloud上のREST/Websocket APIから操作可能です。
* sdk for javascript
sdkを使えばHTMLやNodejsの中のjavascriptでobnizのプログラムを書くことができます。
* オンラインのHTMLプログラム画面
obnizはOLEDにQRを表示します。そのQRをスキャンするだけでオンラインのプログラム画面を開くことができます。プログラムや・実行にアプリのインストールは不要です。
* たくさんの部品をそのまま繋ぐ
柔軟なIOです。
- 12 IO
- 最大 1A @ each IO.
- 5v/3v 切り替え. 出力モード push-pull/open-drain. pull-up3v, pull-up5v,pull-down が利用可能です。またこれらは1IOごとに設定できます。
- AD/SPI/I2C はすべてのIOにアサインできます。
* 過電流プロテクション
1Aドライブモードでは過電流やそれによる加熱で自動シャットダウンします。
[ 回路仕様 ]
Dimension: 74.5*36.3 mm (including usb,switch )
WiFi: 802.11 b/g. 802.11 n (2.4 GHz), up to 150 Mbps
Bluetooth: Compliant with Bluetooth v4.2 BR/EDR and BLE specification
Certifications: 技適適用。その他の国に関しては ESPの取得している各国の電波法に準拠。詳しくは
http://espressif.com/en/certificates?field_product_value%5B%5D=ESP-WROOM-32
OLED: White 128*64
Peripherals:
- GPIO 12
- A/D 12
- PWM 6 assignable to everyIO
- UART 2 assignable to everyIO
- SPI 2 assignable to everyIO
- I2C 1 assignable to everyIO
Soldering: PbFree
